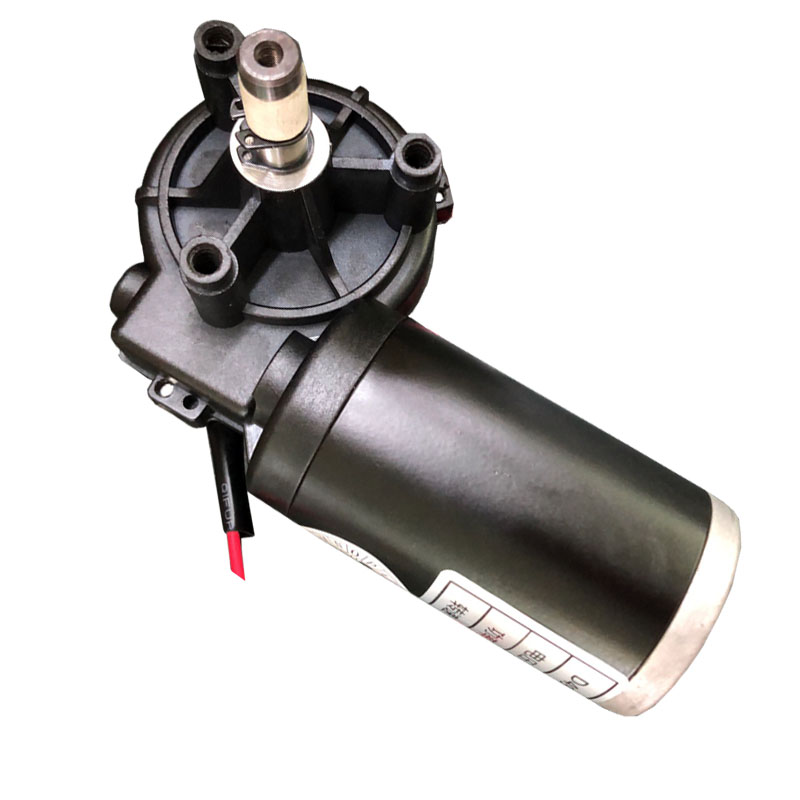

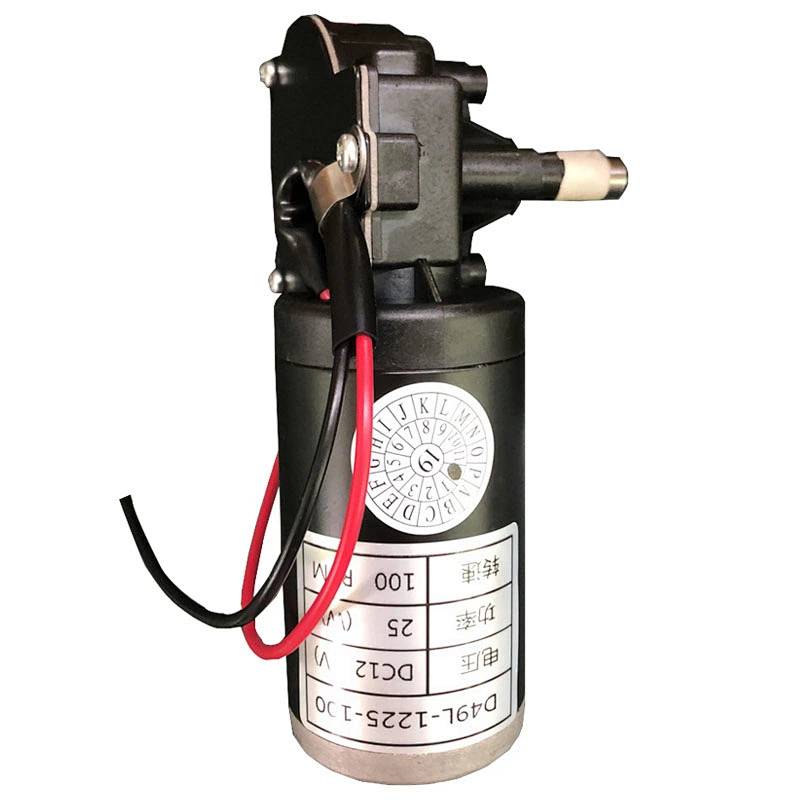

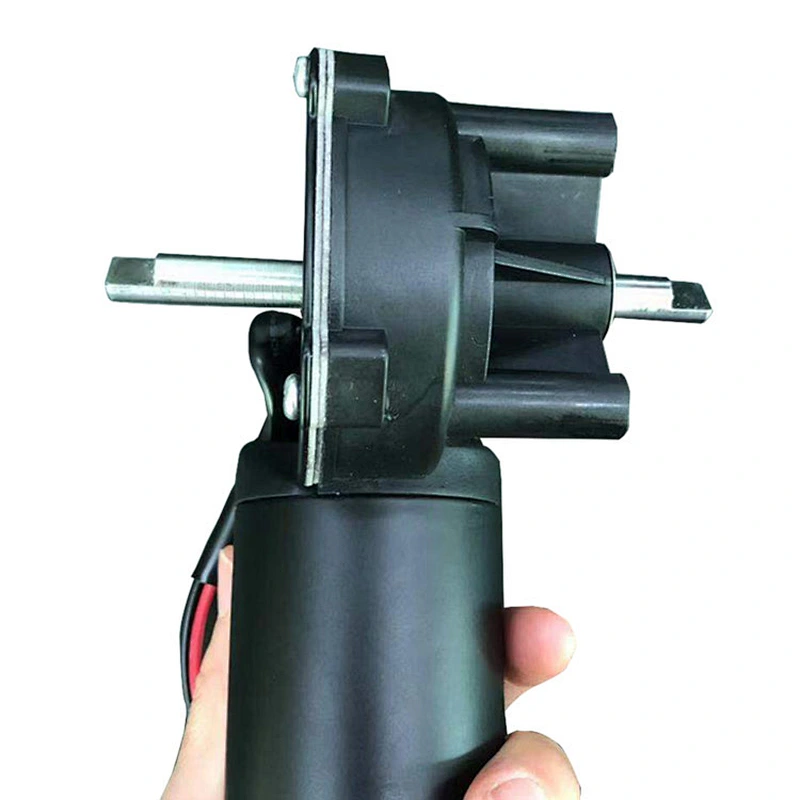

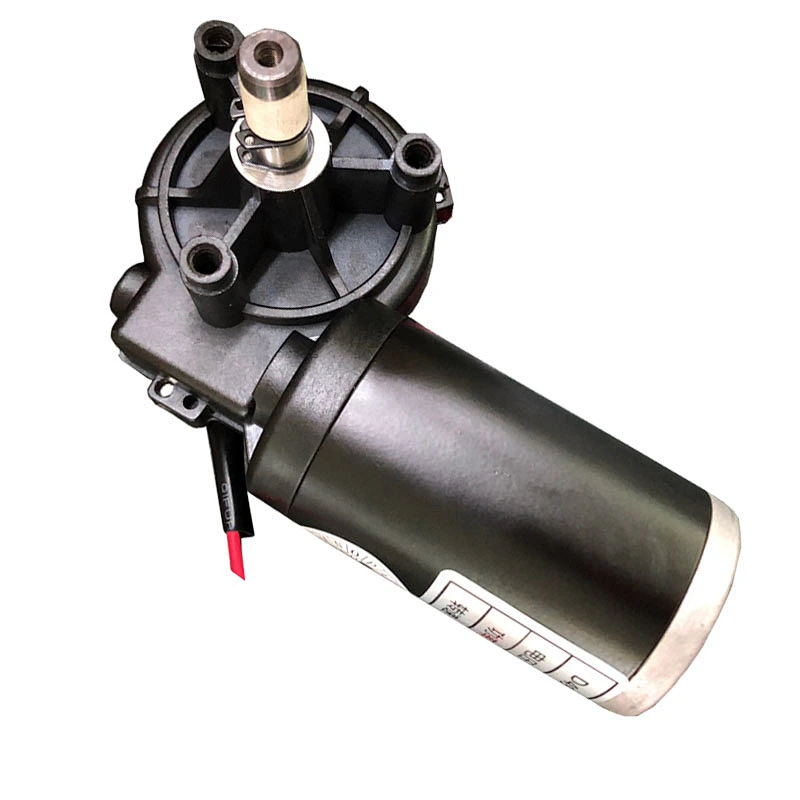

49mm Dc Geared Motor 12V 100 RPM
Product Parameter
Geared Dc Motor with Encoder
Product Parameter
| Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | Motor Length (mm) | |||
| Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | |||||
| D49L/R-2425-180 | 24 | 25 | 180±5 | ≤0.8 | 150±5 | ≤3.0 | ≤3.5 | 1:28 | 71 |
| D49R/L-2425-150 | 24 | 25 | 150±5 | ≤0.8 | 130±5 | ≤3.0 | ≤3.5 | 1:28 | 71 |
| D49R/L-2415-90 | 24 | 15 | 90±5 | ≤0.8 | 80±5 | ≤3.0 | ≤5.0 | 1:56 | 56 |
| D49R/L-2410-65 | 24 | 10 | 65±3 | ≤0.8 | 60±3 | ≤3.0 | ≤5.0 | 1:56 | 56 |
| D49R/L-1220-70 | 12 | 20 | 70±3 | ≤1.2 | 65±33 | ≤3.5 | ≤6.0 | 1:56 | 71 |
| D49R/L-1220-65 | 12 | 20 | 65±3 | ≤1.2 | 55±3 | ≤3.5 | ≤6.0 | 1:56 | 71 |
| D49R/L-4815-35 | 48 | 15 | 35±3 | ≤1.2 | 30±33 | ≤4.0 | ≤7.0 | 1:70 | 56 |
| D49R/L-4215-35 | 42 | 15 | 35±3 | ≤1.2 | 30±33 | ≤4.0 | ≤7.0 | 1:70 | 56 |
| D49R/L-2410-15 | 24 | 10 | 15±3 | ≤1.2 | 10±3 | ≤4.0 | ≤6.5 | 1:70 | 56 |
| D49R/L-1210-15 | 12 | 10 | 15±3 | 1.2 | 10±3 | ≤4.0 | ≤6.5 | 1:70 | 56 |

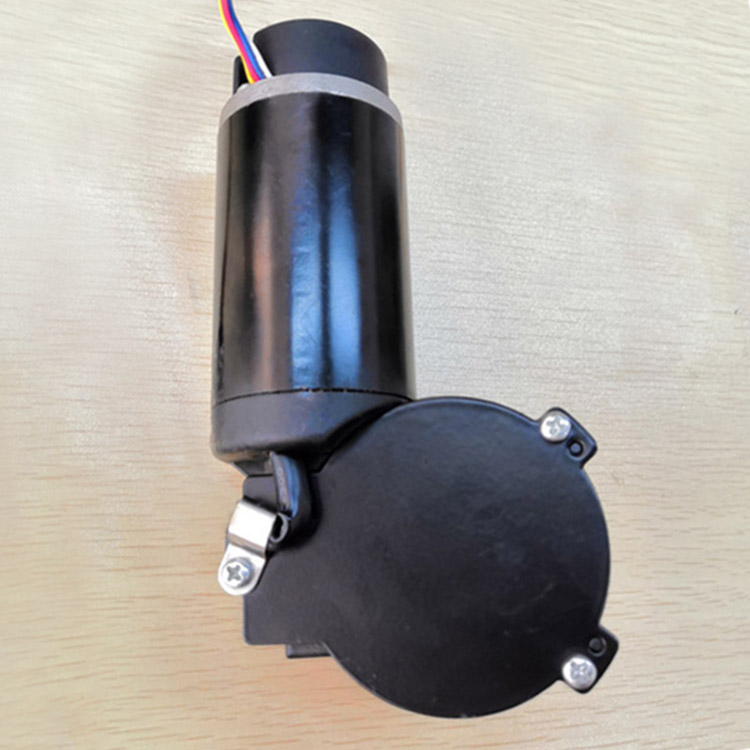

Geared Dc Motor with Encoder
