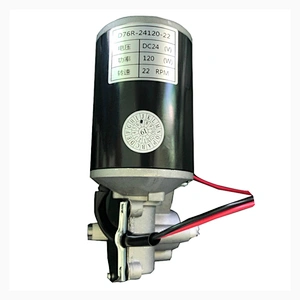

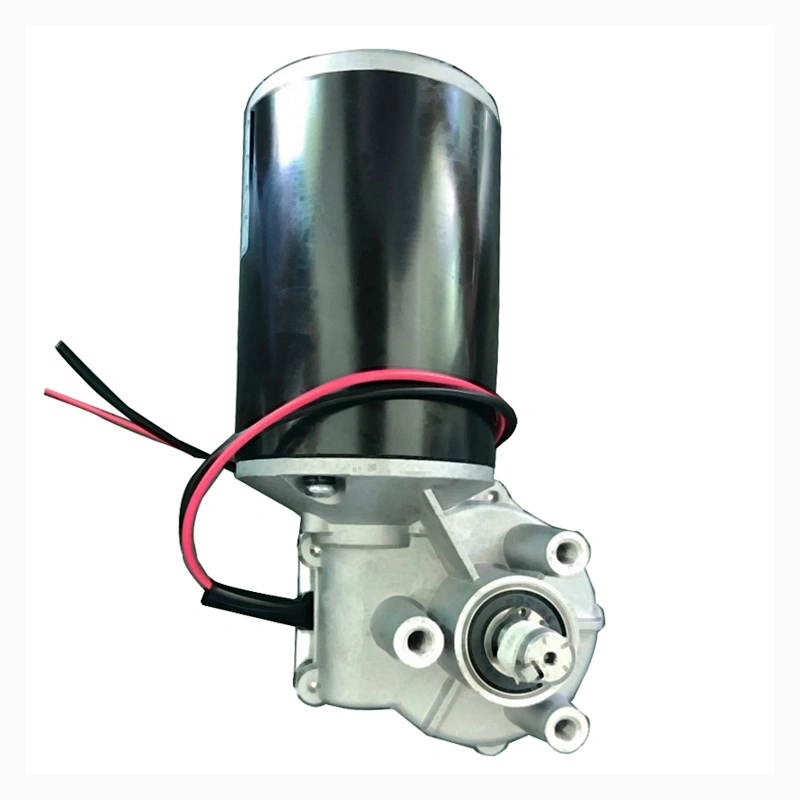

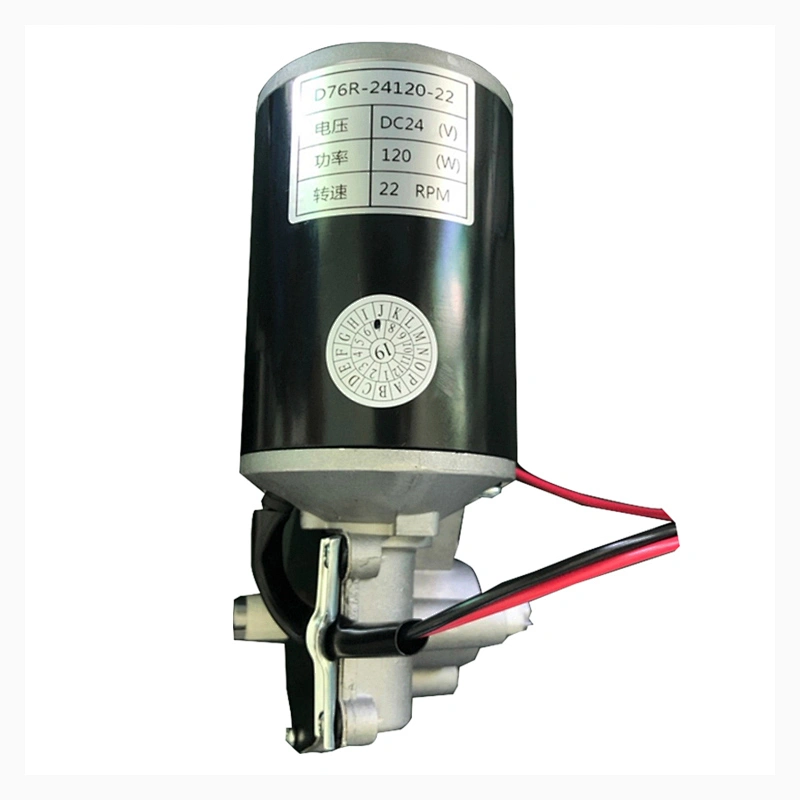

24V Garage Door Motor
Since different garage doors use different models and torques,please provide the brand and model of the garage door, or provide the picture of the motor, we will recommend a suitable motor for you.We also can process according to your samples, and design and produce small gear motors of various special specifications
Motor Specifications:
Many customers always want to replace the motor with a high power motor,In this case, several factors need to be considered.
- Installation space,the larger the motor power, the larger the volume,so it is necessary to check whether the space inside the host is enough,otherwise the motor is installed, and the outer cover cannot be installed, which will affect the appearance.
- The power of the control main board and the transformer must be supplied enough so that the motor can play a sufficient efficiency.
Since different garage doors use different models and torques,please provide the brand and model of the garage door, or provide the picture of the motor, we will recommend a suitable motor for you.We also can process according to your samples, and design and produce small gear motors of various special specifications

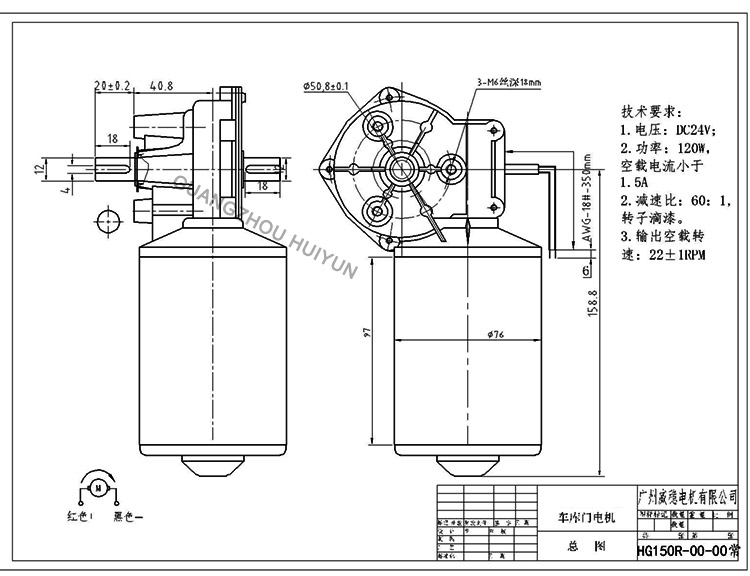

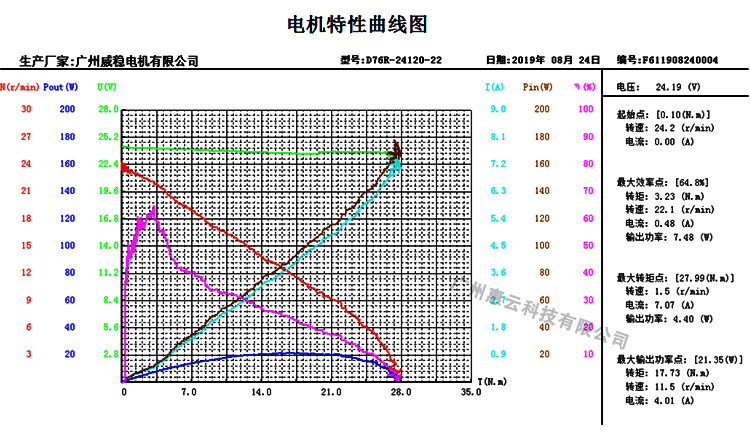

| Motor Type | PMDC Right Angle Gear Motors |
| Motor Model | D76R-24120-22 |
| Motor Voltage | DC24V |
| Motor Power | 120W (optional) |
| No-load Speed | 22±1 rpm |
| No-load Current | 1.5A |
| Gear Ratio | 60:1 |
| Gear Modulus | 60:1 M=1 |
| Usage | Garage Roller Door Motor,Motor for Garage Door |
| Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | Motor Length (mm) | |||
| Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | |||||
| D76L/R-2460-30 | 24 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.5 | ≥4.5 | 1:75 | 77 |
| D76L/R-4260-30 | 42 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.5 | ≥5.0 | 1:75 | 77 |
| D76L/R-2460-50 | 24 | 60 | 50±3 | ≤1.2 | 45±3 | ≤3.5 | ≥4.5 | 1:60 | 77 |
| D76L/R-2460-65 | 24 | 60 | 65±3 | ≤1.2 | 60±3 | ≤3.5 | ≥5.0 | 1:60 | 77 |
| D76L/R-4860-75 | 48 | 60 | 75±3 | ≤1.2 | 70±3 | ≤3.5 | ≥5.2 | 1:60 | 77 |
| D76L/R-1280-50 | 12 | 80 | 50±3 | ≤1.4 | 42±3 | ≤4.5 | ≥5.0 | 1:60 | 85 |
| D76L/R-2480-65 | 24 | 80 | 65±3 | ≤1.4 | 62±3 | ≤4.5 | ≥5.2 | 1:60 | 85 |
| D76L/R-1245-150 | 12 | 45 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 77 |
| D76L/R-2445-180 | 24 | 45 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 77 |
| D76L/R-4845-220 | 48 | 45 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 77 |
| D76L/R-2465-200 | 24 | 65 | 200±5 | ≤1.2 | 160±5 | ≤4.5 | ≥4.5 | 1:20 | 85 |
| D76L/R-2465-220 | 24 | 65 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 85 |
| D76L/R-2495-180 | 24 | 95 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 97 |
| D76L/R-2495-220 | 24 | 95 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 97 |
