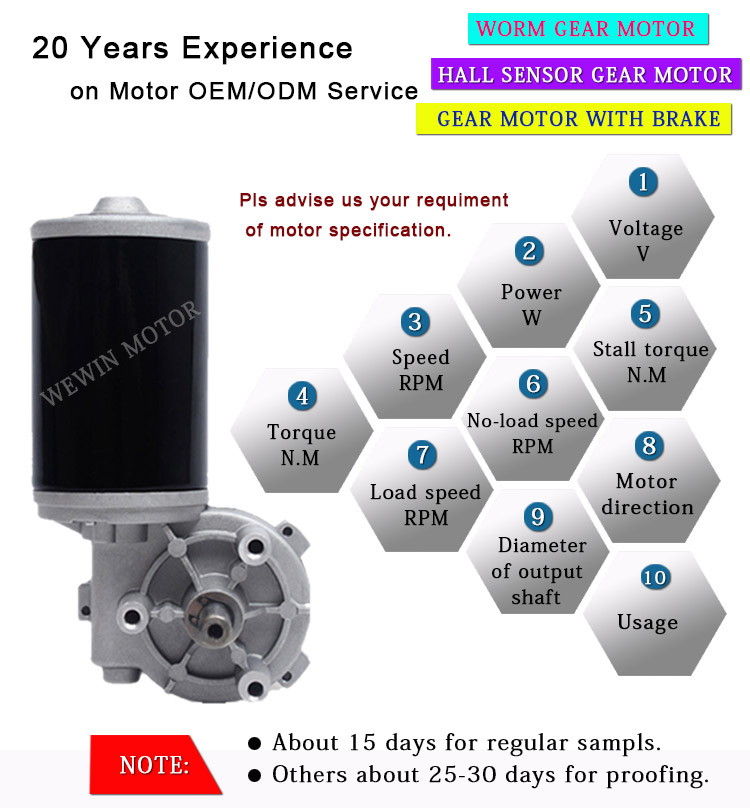

NOTE:
1.Please inform the application of your brushed dc gear motors.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
Gear Motors Specifications:
| Motor Dimension | 49mm 59mm 63mm 76mm 88mm 110mm |
| Motor Power | DC 12V 24V 36V 48V |
| Material of Gear | Plastic / Copper |
| Motor Gearbox | Right Angle Gearbox Motor , Left Anlge Gear boxes |
| Diameter of Output Shaft | 6mm 8mm 10mm 12mm 14mm(Optional) |
| Speed Sensor | Hall Sensor,Dc Motor with Encoder,Opto sensor |
| Factory Address | Huadu,Guangzhou |
| Our Dc Motors Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self Locking Motor, Forward & Reverse 4.Competitive factory price 5.Sample order are welcome |

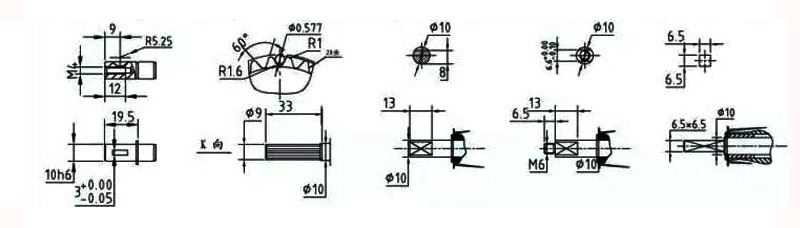

Half Round Key Shaft Spline Shaft D Shaft Flat Shaft Double Flat Shaft Square Flat Shaft

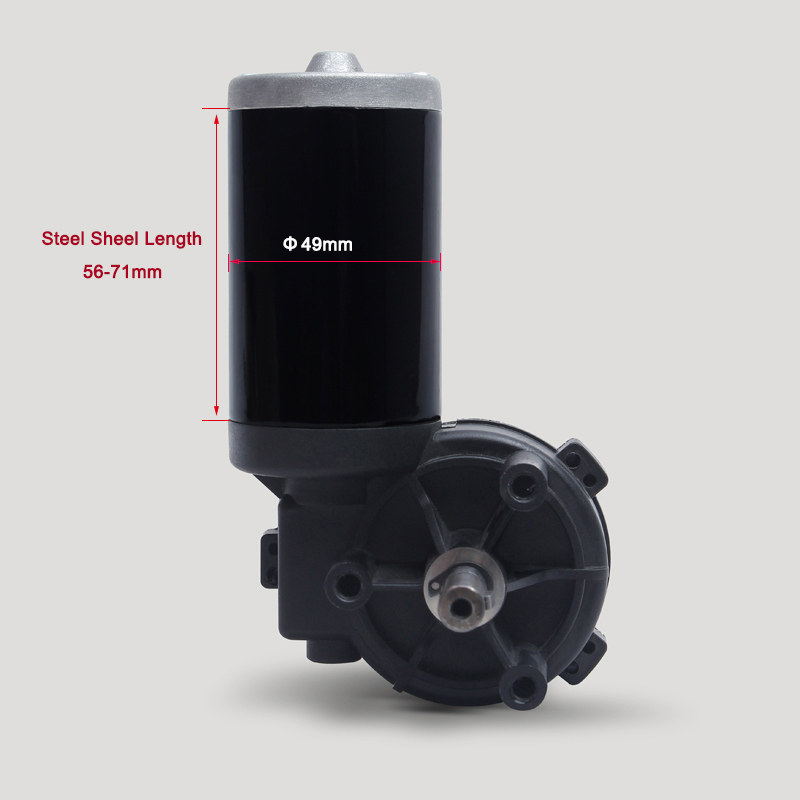

 | Motor Power: 10W,15W,20W,25W,30W,40W,50W (Max) No-load Speed: 15 RPM,35 RPM,70 RPM,100 RPM,150 RPM, 180 RPM,200 RPM,300 RPM(Max) 12V Dc Motor High Torque Low Rpm: 5N.m - 8N.m Steel Sheel Length:56-71mm Gear Ratio: 70:1 56:1 56:2 Gear Madulus: 70:1 M=0.8 56:1 56:2 M=1 |

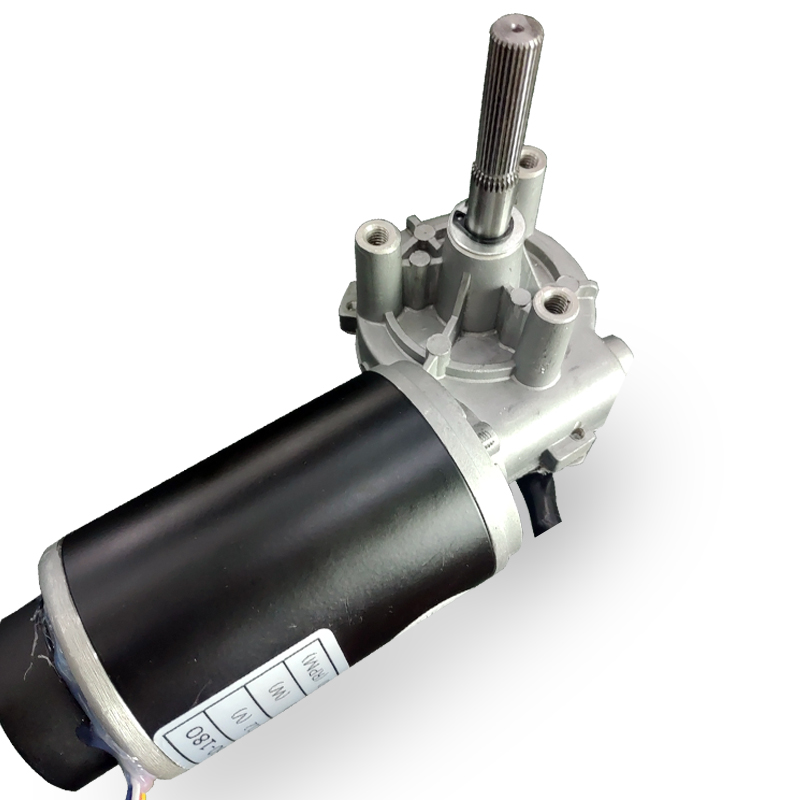

 | Aluminum gear motors |
D59 Series Geared Dc Motors
 | Motor Power: 20W,30W,40W,50W,60W,80W(Max) No-load Speed: 15 RPM,30 RPM,60 RPM,80 RPM,130 RPM, 150 RPM,180 RPM,210 RPM,250 RPM(Max) 12V Dc Motor HighTorque: 6N.m - 10N.m Steel Sheel Length:74-80mm Gear Ratio: 70:1 56:1 56:2 Gear Modulus: 70:1 M=0.8 56:1 56:2 M=1 |

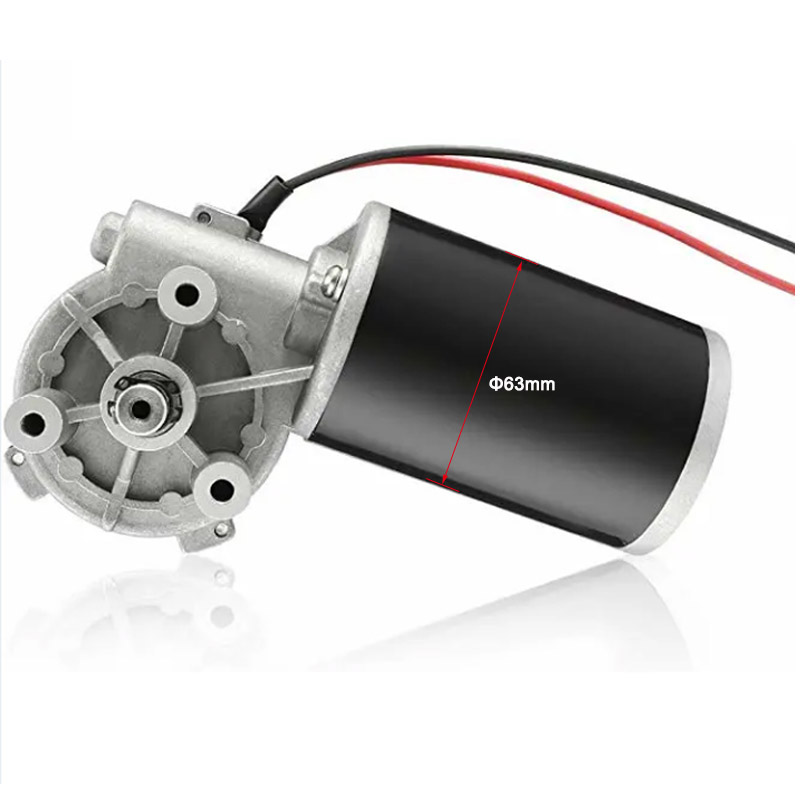

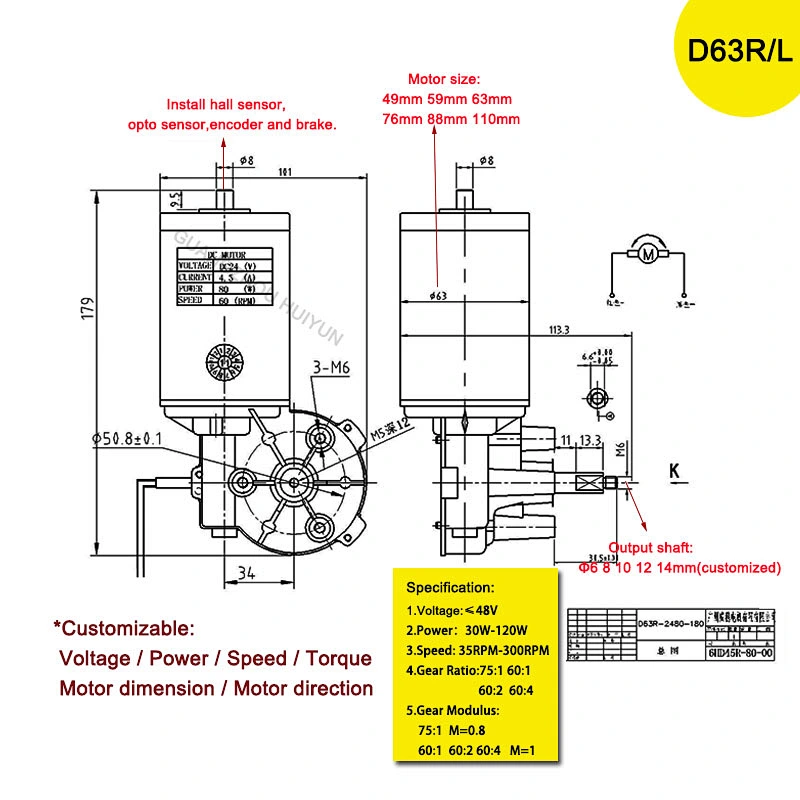

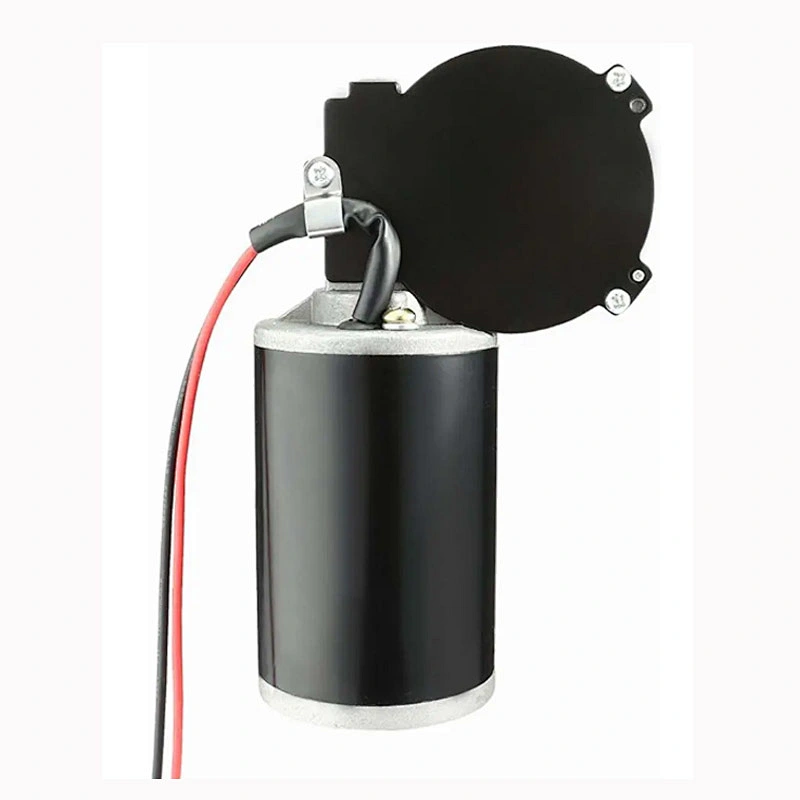

D63 Series Worm Gear Reducer Motor:
 | Motor Power: 30W,45W 80W,100W,120W(Max) No-load Speed: 35 RPM,65 RPM,130 RPM,150 RPM,180 RPM, 210 RPM,270 RPM,300 RPM(Max) High Torque Geared Dc Motor: 10N.m - 15N.m Steel Sheel Length: 74-80mm Gear Modulus: 75:1 60:1 60:2 60:4 Gear Ratio: 75:1 M=0.8 60:1 60:2 60:4 M=1 |

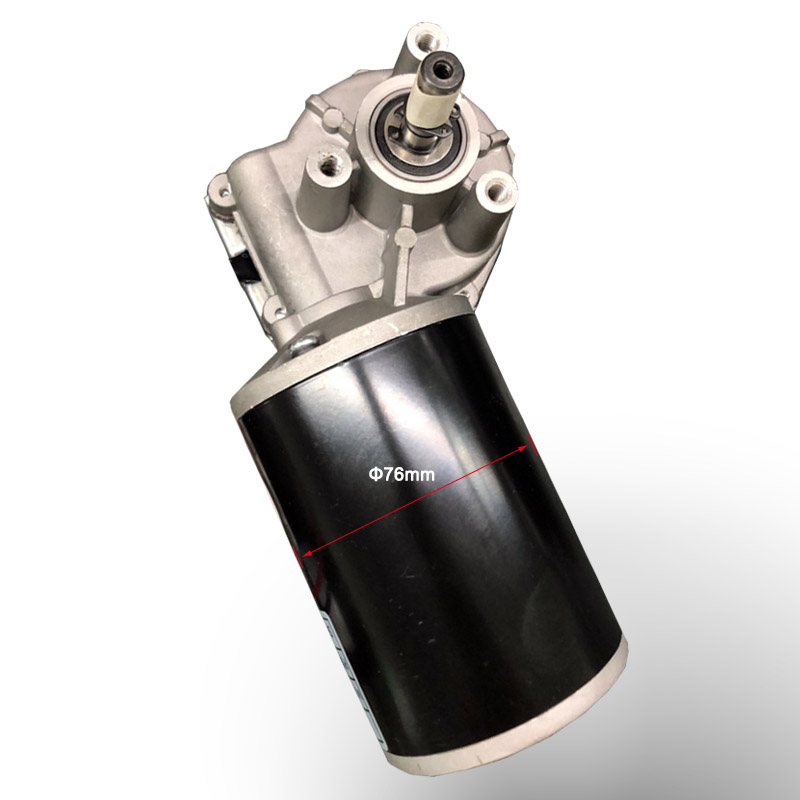

D76 Series Electric Motor with Reduction
 | Motor Power: 45W,65W,80W,100W,140W,150W,180W,200W(Max) No-load Speed: 25 RPM,40 RPM,60 RPM,90 RPM,120 RPM, 150 RPM,180 RPM,220 RPM,300 RPM(Max) 24V Dc Motor High Torque Low Speed: 12N.m-18N.m Steel Sheel Length: 77-97mm Gear Modulus: 75:1 60:1 60:2 60:4 Gear Ratio: 75:1 M=0.8 60:1 60:2 60:4 M=1 |

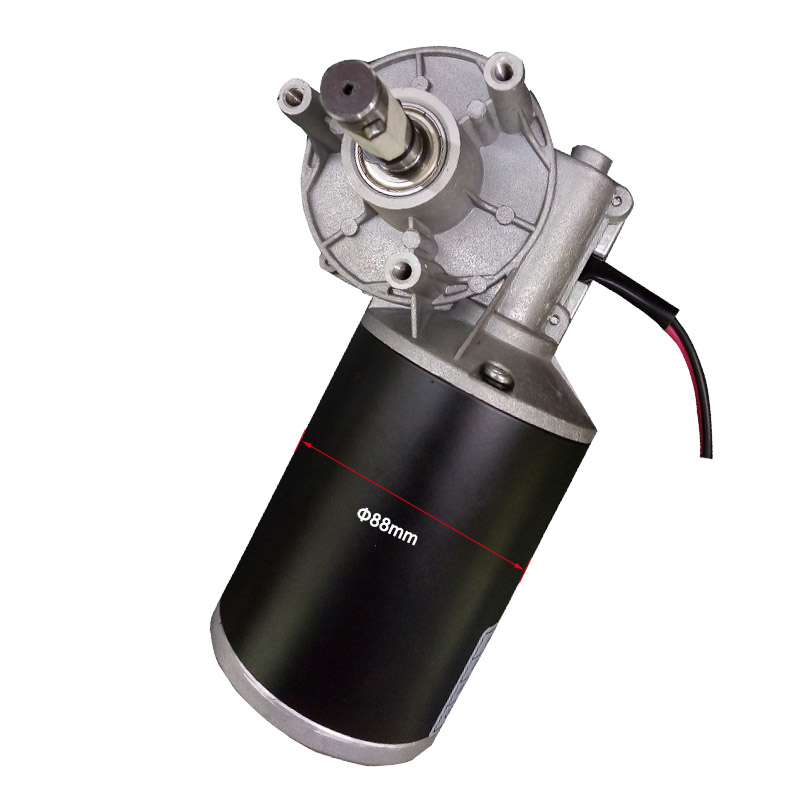

 | Motor Power: 100W,120W,150W,200W,300W,500W,600W(Max) No-load Speed: 20 RPM,100 RPM,180 RPM,200 RPM,220 RPM(Max) Variable Speed High Torque Motor: 23N.m - 30N.m Steel Sheel Length:100mm Gear Modulus: 82:1 64:1 53:1 Gear Ratio: 82:1 M=1 64:1 M=1.25 53:1 M=1.5 |

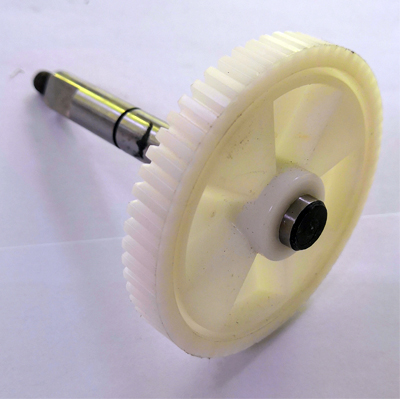

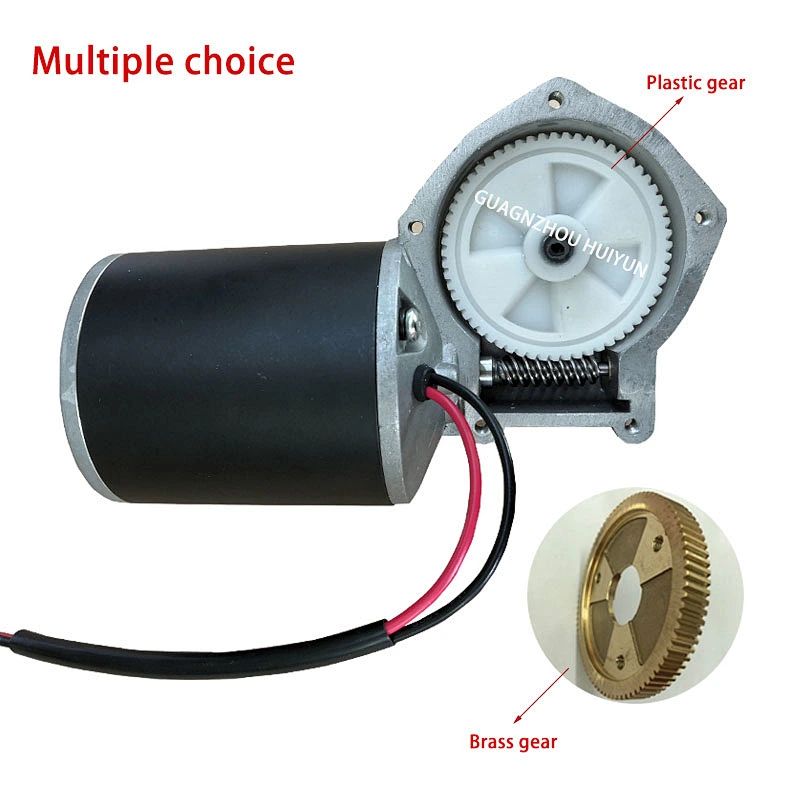

 | 1.Motor Plastic Gear The plastic gear with low noise,low cost,long life within the torque range. |

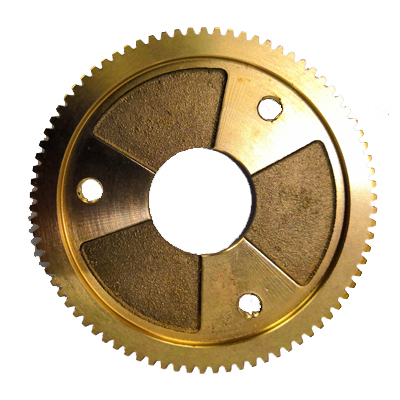

| 2.Copper Gear The copper gear with high torque and high temperature resistance,and the life can belonger if the lubrication effect can be guranteed,So the cost higher thanplastic gear . |  |

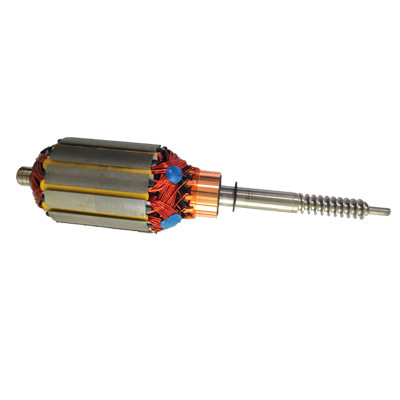

 | 3.Electronic Rotor Pure copper coil configuration,reducing resistance and high conductivity to ensure motor efficienty,stable and safe operation. |

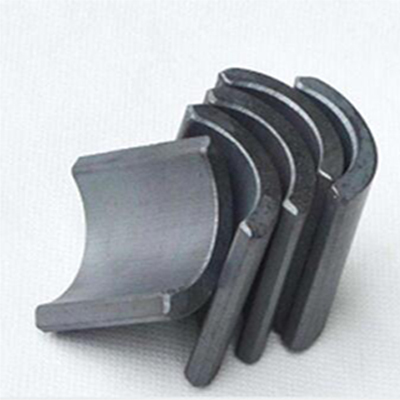

| 4.Magnet Thickened magnets,strengthen the magnetic filed,high torque and strong anti-interference. |  |

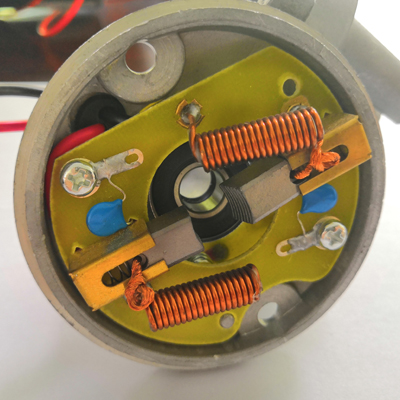

 | 5.High Quality Carbon Brush The wear resistance of the carbon brush directly determines how long the motor can last. |

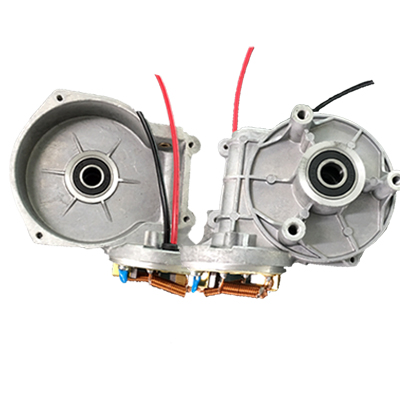

| 6.Worm Gearbox All made of high qualiy metal,it has good impact resistance,durablity and reducing noise.Thus prolong the life of the motor gear box. |  |

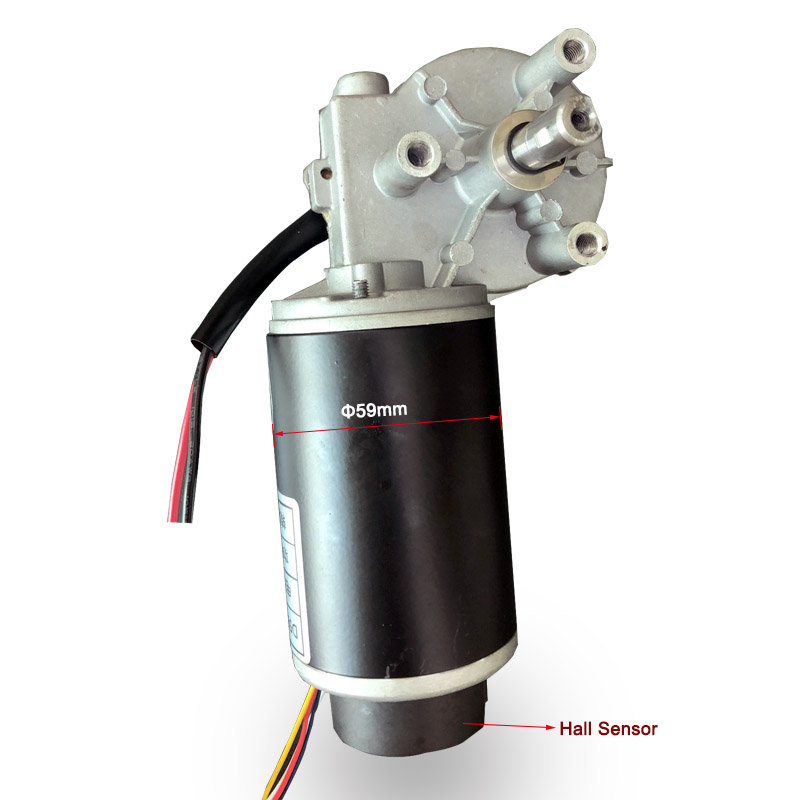

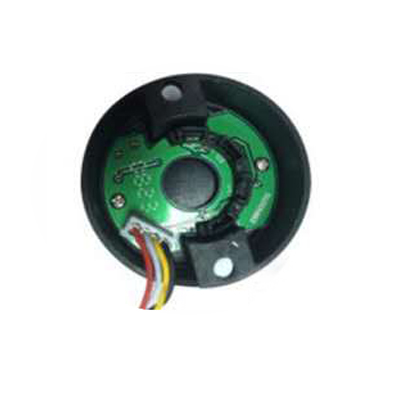

 | 7.Hall Sensor The sensor could record the speed if gear motor dc has encoder. |

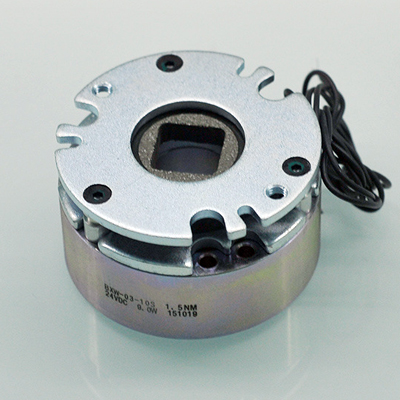

| 8.Brake If the gear dc motor has brake,it could still rotate when the brake stops. |  |

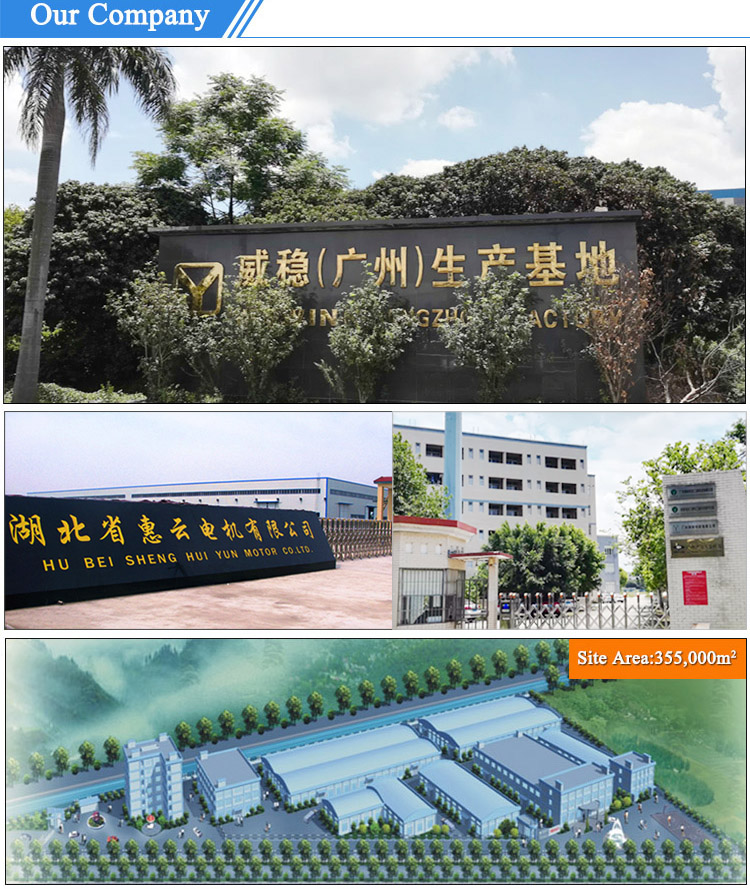

Guangzhou Huiyun Science & Technology Co.,Ltd is a subsidiary of Guangzhou Wewin Motor Co.,Ltd.The factory is located in Huadu,Guangzhou,we can design and manufacture of motors according to all our customers' demands so far,we can manufacture about 60,000 motors per month.
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Company Advantages:
1. Big production capacity, fast delivery.
2. Strict QC inspecting rules: all products must be 100% inspected before delivery.
3. OEM/ODM services are available
4. 24 hours online service.
5. Prompt quotation for your inquiry
6. Quality,reliability and long product life.
7. Professional manufacturer offers competitive price.
8. Diversified rich experienced skilled workers.

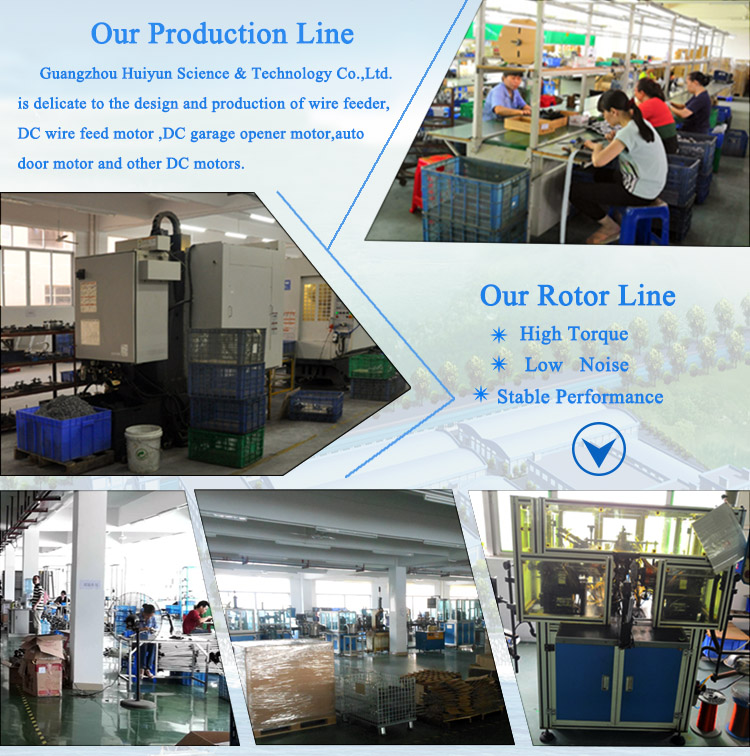

Production Flow
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Tester Machine
 |  |  |
RFQ:
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in Dc Worm Gear Motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: Brushed Dc Gear MotorsandGeared Micro Motorwithout gear box-Welding equipment: Wire Feeder
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.

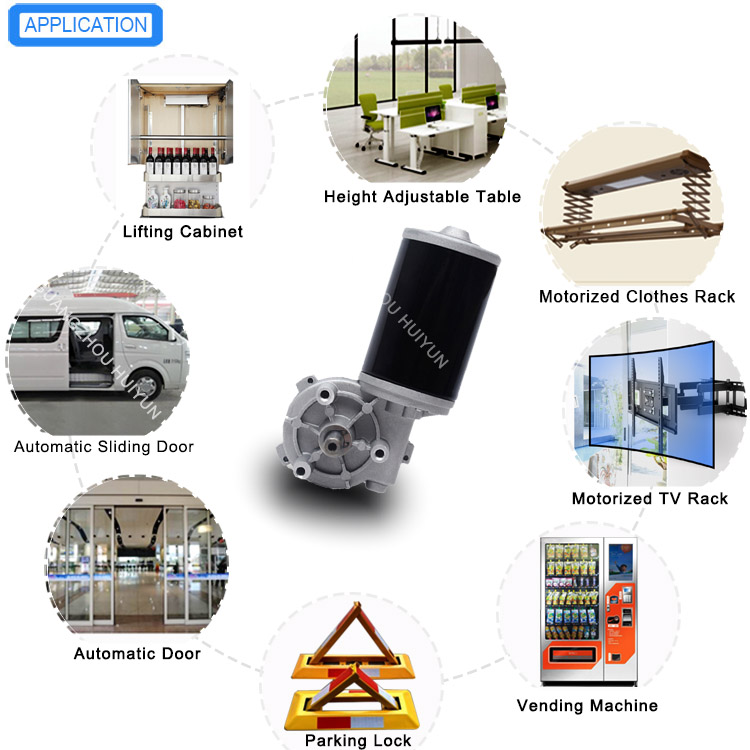

Welding Machine Motor,Sewing Machine Motor,Vending Motor,Smart Home Intelligent Equipment,Office Intelligent euquipment,Lifting Cabinet Motor,Electric Hospital Lift Bed Motor,Hydraulic Pump Motor ,Electric Forklift Motor,Motorzied TV Rack Motor,Motorized Clothes Rack Motor

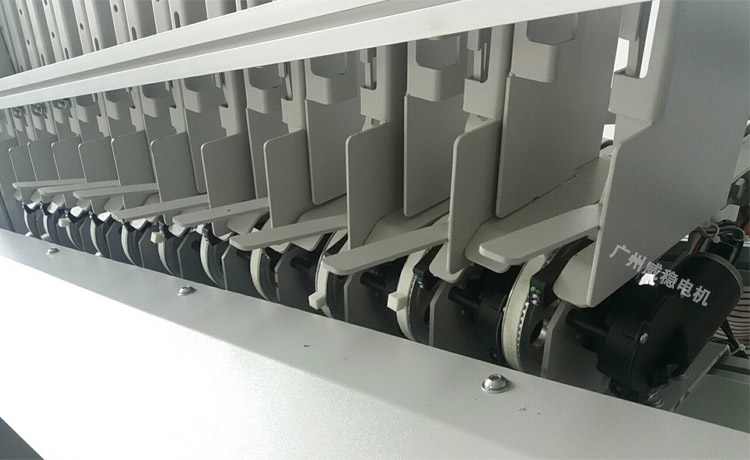

Conveyor Motor
