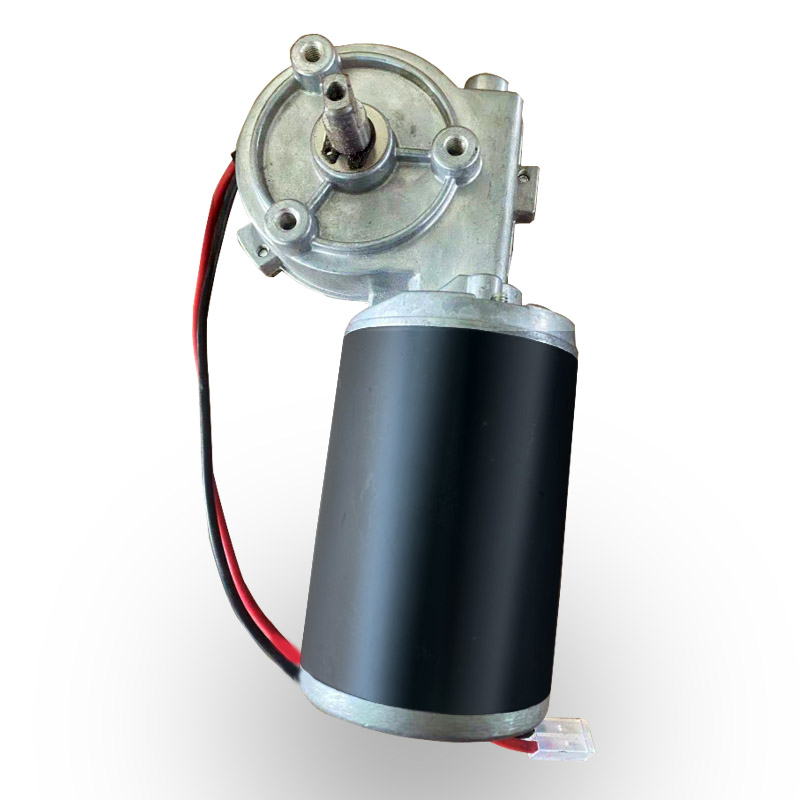

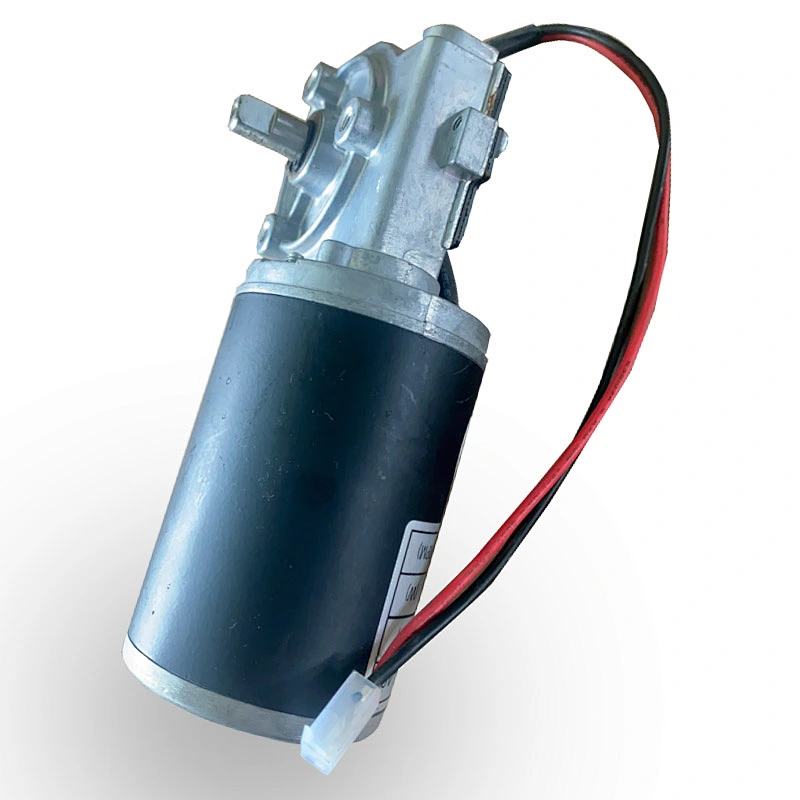

59mm Worm Gear Motor 12V 40RPM

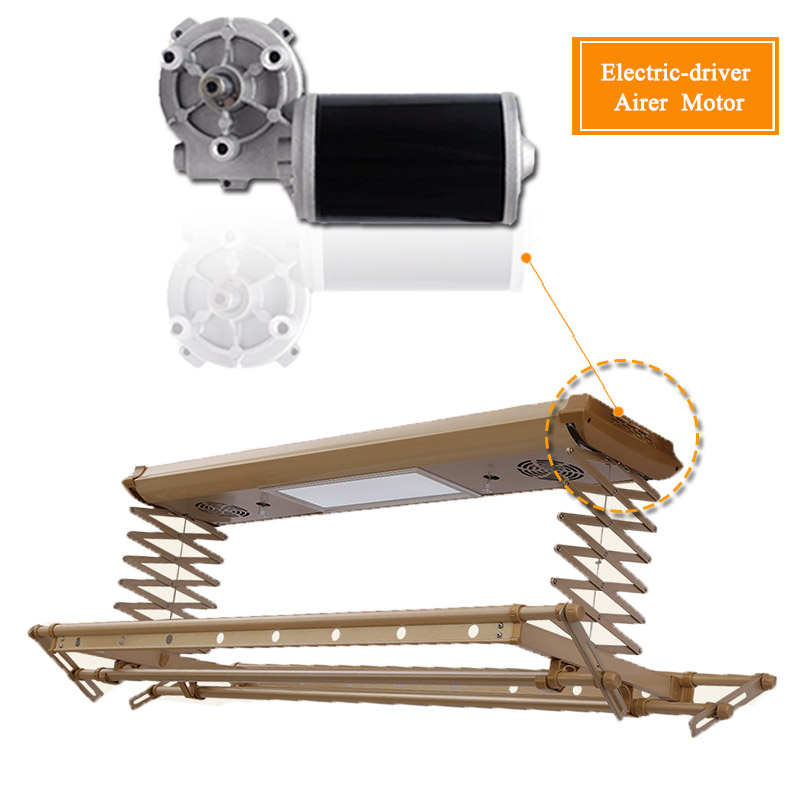

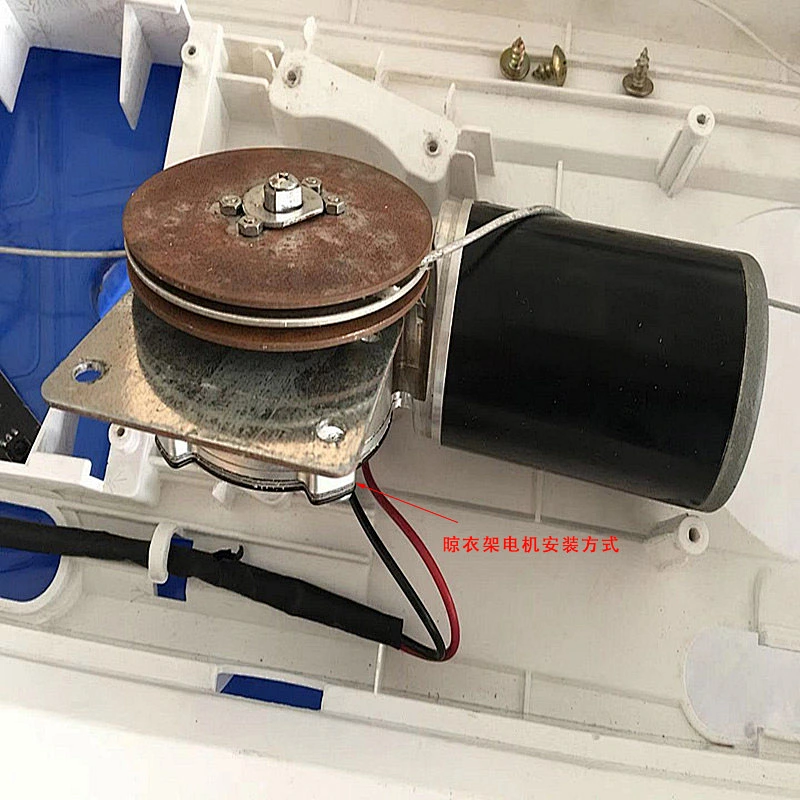

The worm geared motors for automatic clothes drying rack is made up of a motion system driven by the motor, intelligent control system, and metal frame.WEWIN MOTOR company can offer solutions to meet your requirement like speed current.
Specification:
Motor Advantage:
NOTE:
The max bearing capacity of the gear is 35kg,It is forbidden to block ,or it is easy to burn the motor for a long time.
Instructions for use:
The worm gear motor 12v is self locking and the power supply of motor is forwards and reverse
Motor Parameters:
Applications:
Our worm gear motor 12v is widely used in household appliance,office intelligent equipment,hospital lifting bed,clothes drying stand,electric sit stand desk,kitchen food waste machine,industrial lifting machine and other power tools.
The worm geared motors for automatic clothes drying rack is made up of a motion system driven by the motor, intelligent control system, and metal frame.WEWIN MOTOR company can offer solutions to meet your requirement like speed current.
Specification:

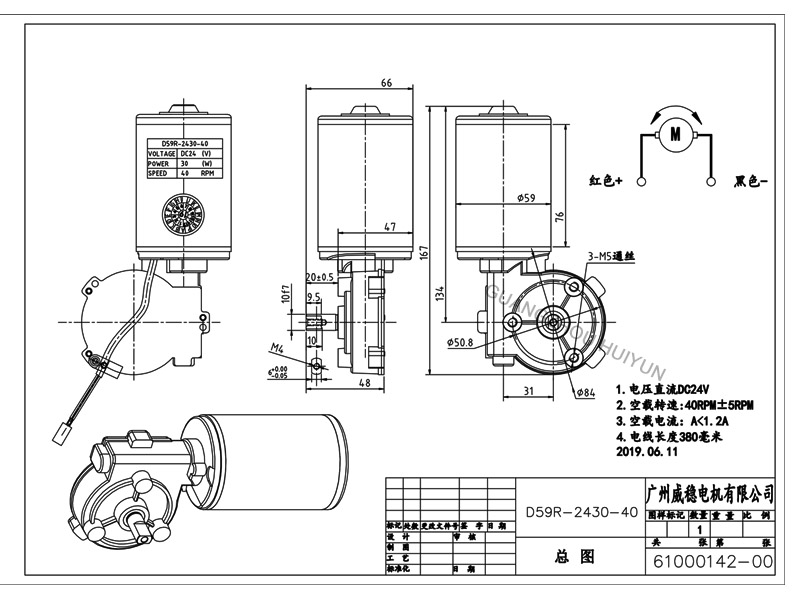

| Motor Type | dc motor for electric clothes drying rack |

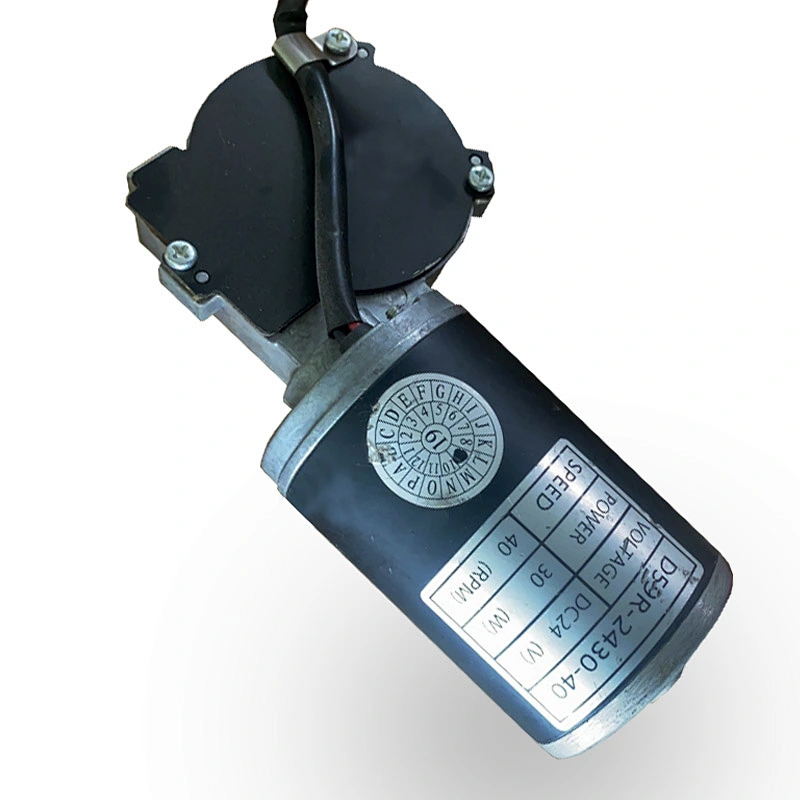

| Motor Model | D59R-2430-40 |
| Voltage | DC24V |
| Power | 30W |
| No-load Speed | 40±5RPM |
| No-load Current | ＜1.2A |
| Lifting Height | 1.5m |
| Lifting Time | 45's |
| Noise | Lower than 50db under stable circumstance |
Motor Advantage:
- Competitive factory price
- Machined steel teeth
- Copper worm gear / plastic gear
- Single / double ball bearings
NOTE:
The max bearing capacity of the gear is 35kg,It is forbidden to block ,or it is easy to burn the motor for a long time.
Instructions for use:
The worm gear motor 12v is self locking and the power supply of motor is forwards and reverse

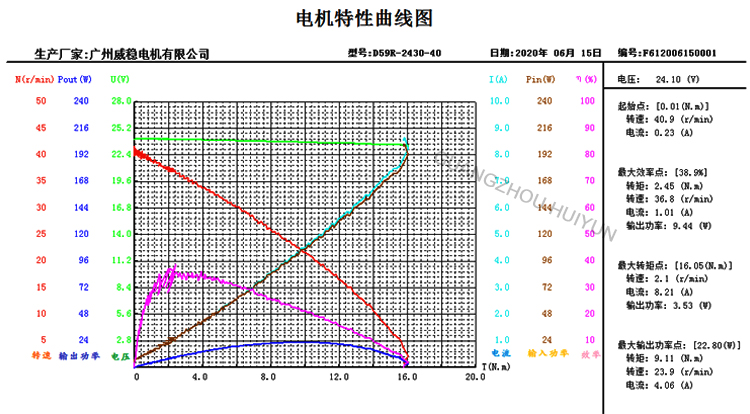

| Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | Motor Length (mm) | |||
| Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | |||||
| D59L/R-1230-15 | 12 | 30 | 15±2 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2430-15 | 24 | 30 | 15±2 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2450-36 | 24 | 50 | 36±2 | ≤1.2 | 32±2 | ≤6.5 | ≥8.0 | 1:70 | 80 |
| D59L/R-1230-65 | 12 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-2430-65 | 24 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4830-65 | 48 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4230-65 | 42 | 30 | 130±5 | ≤1.5 | 100±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-150 | 24 | 30 | 150±5 | ≤1.0 | 130±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-180 | 24 | 30 | 180±5 | ≤1.2 | 150±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-210 | 24 | 30 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥4.2 | 1:28 | 80 |
Our worm gear motor 12v is widely used in household appliance,office intelligent equipment,hospital lifting bed,clothes drying stand,electric sit stand desk,kitchen food waste machine,industrial lifting machine and other power tools.
